32-6 can filling machine

10000-12000 cans/Hour can filling line
model : 32-6
capacity : 10000-12000CPH
can volume : 250ml , 330ml , 500ml
beverage : cola ,beer , juice ....

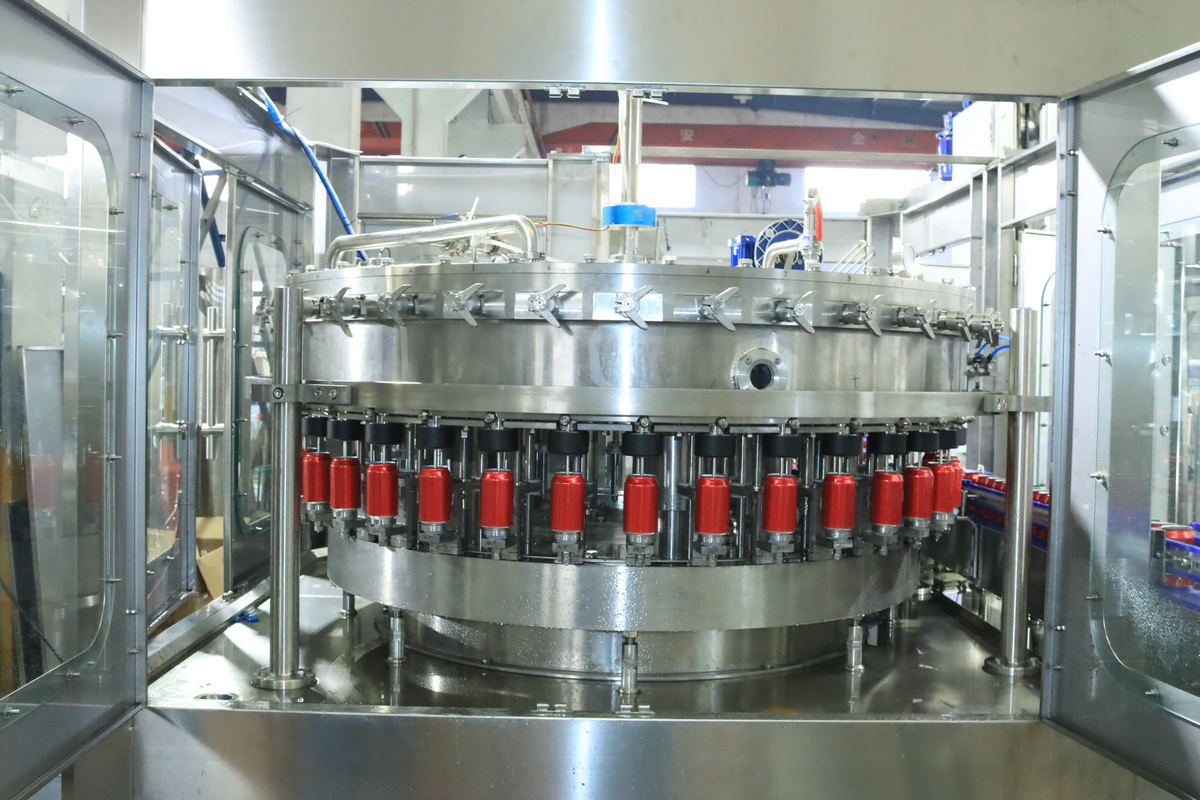

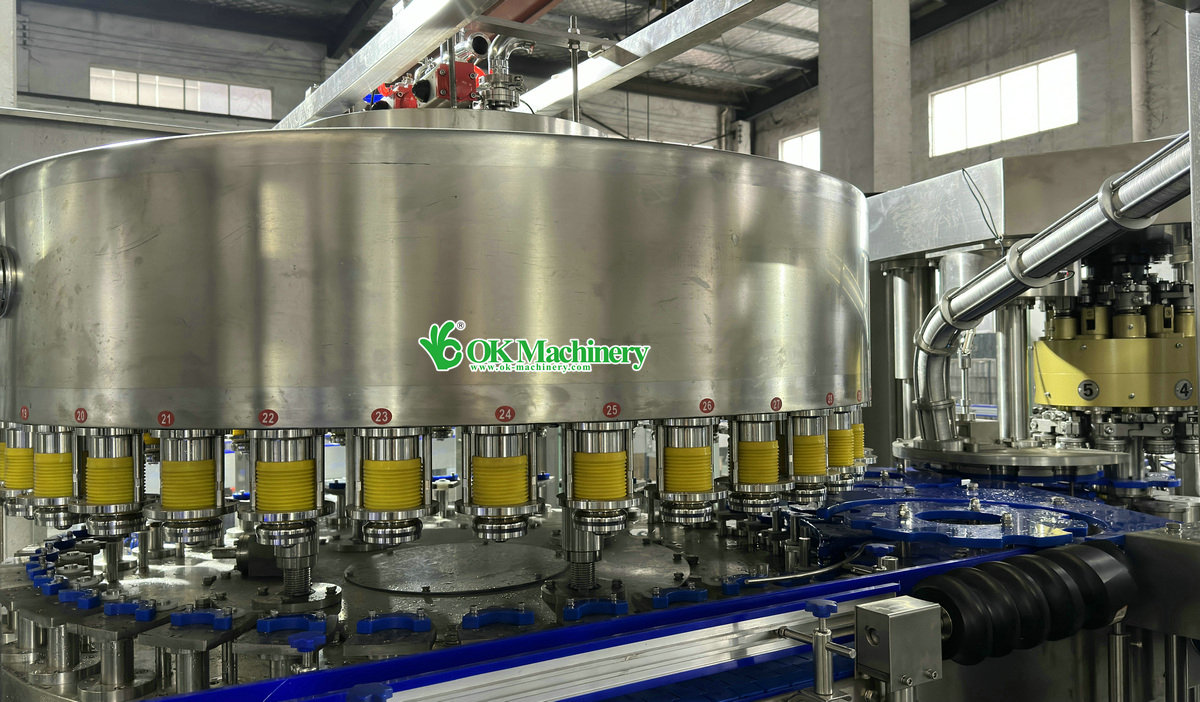

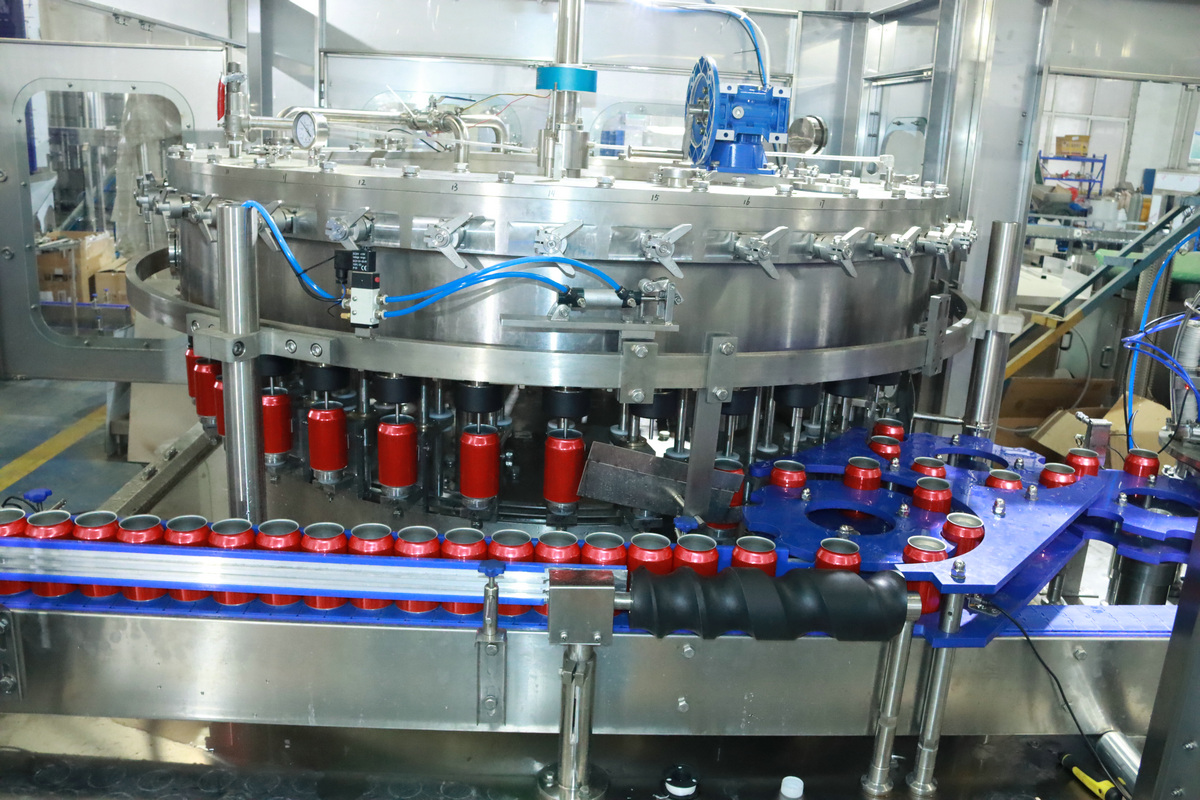

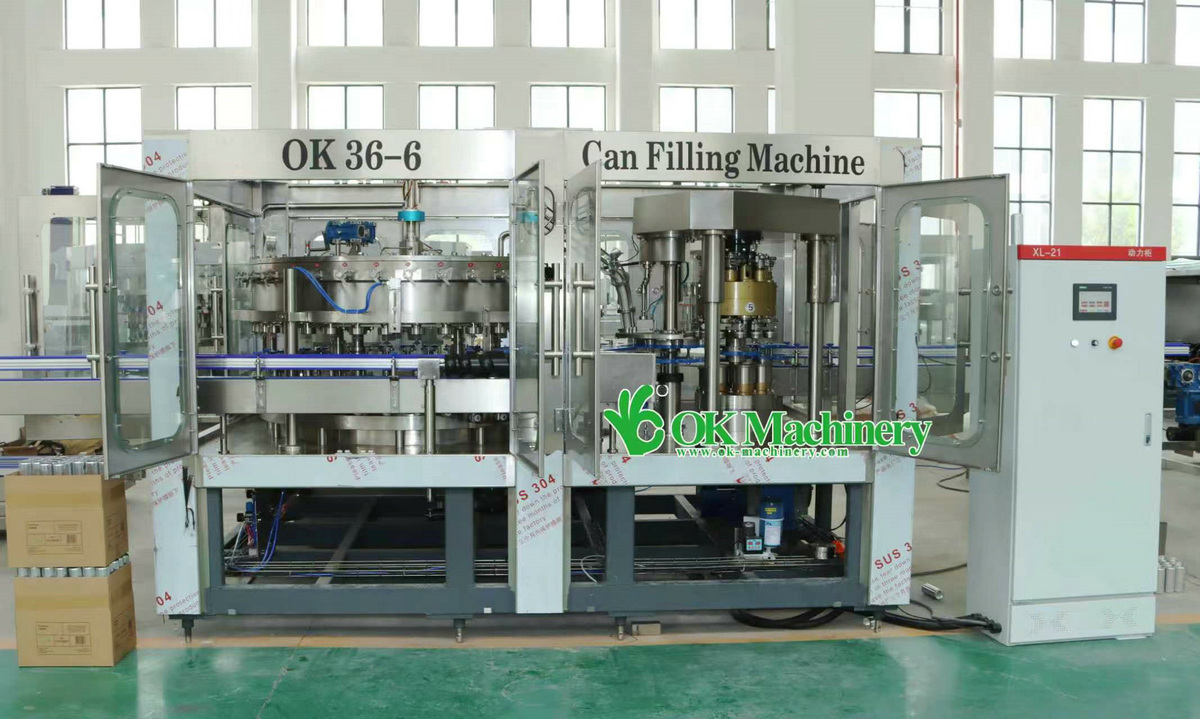

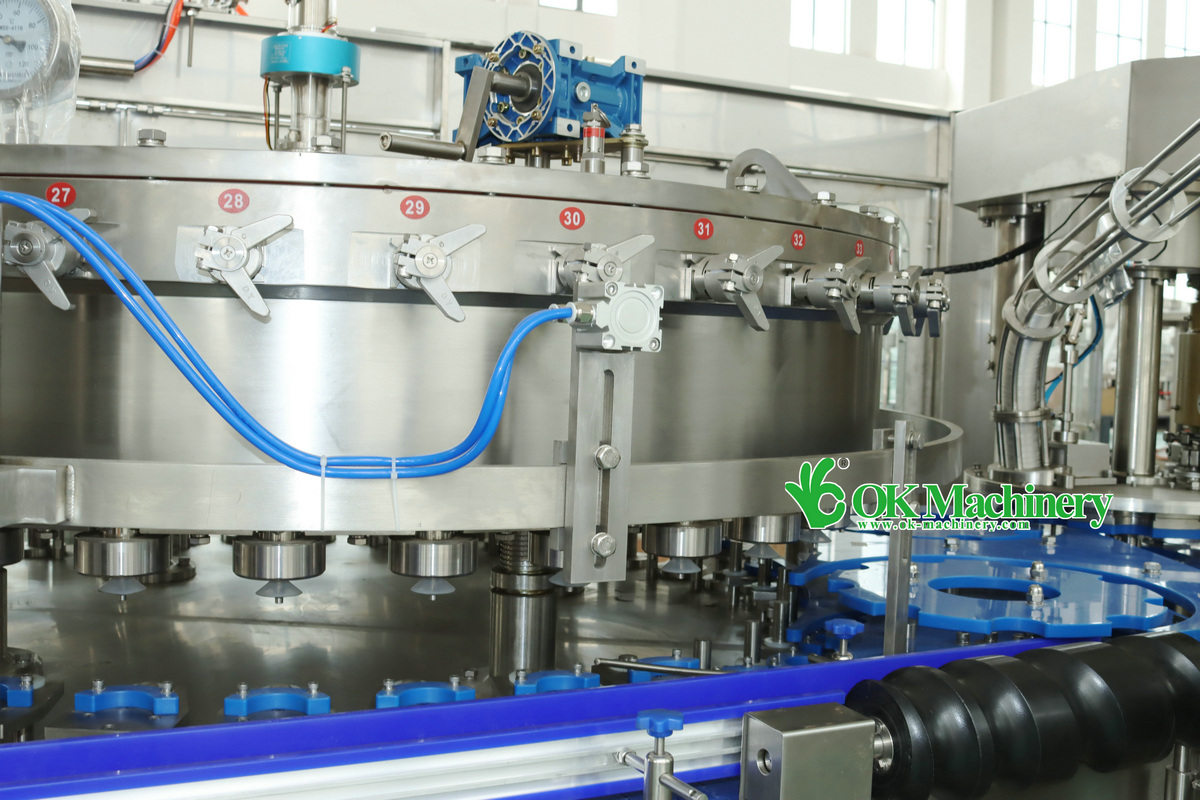

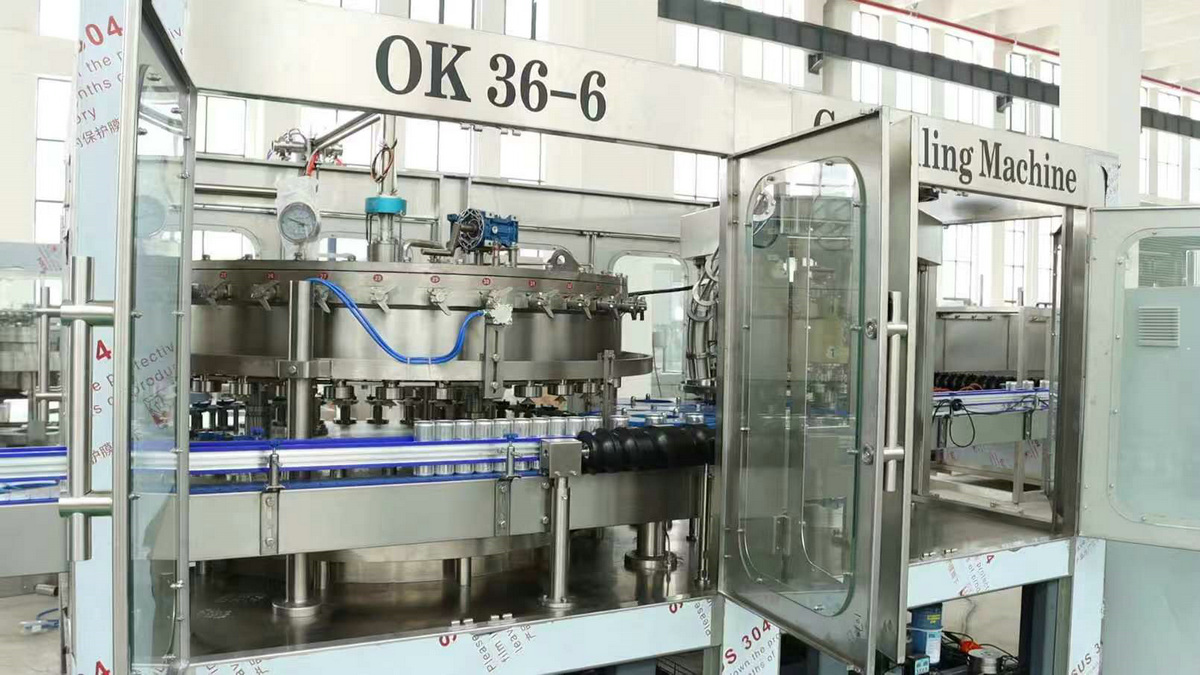

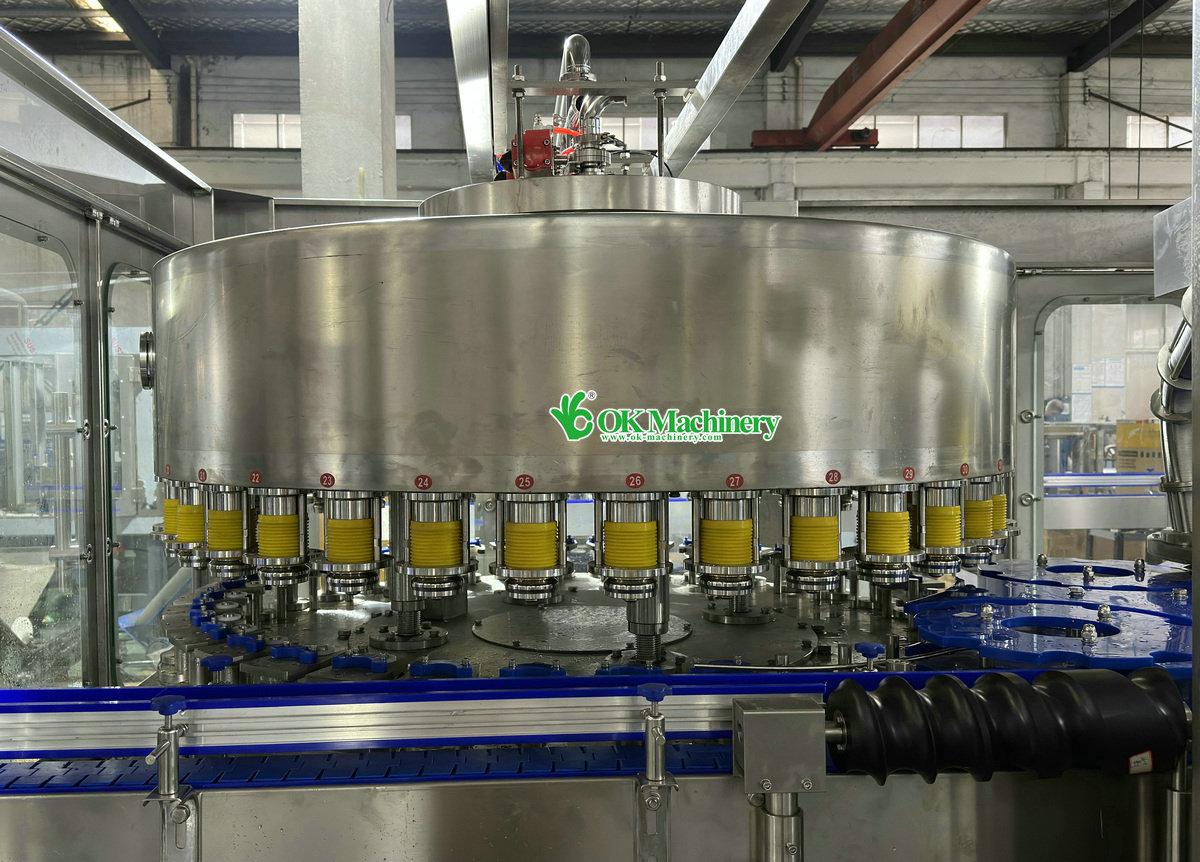

32-6 can filling machine

10000 -12000 cans/hour can filling machine

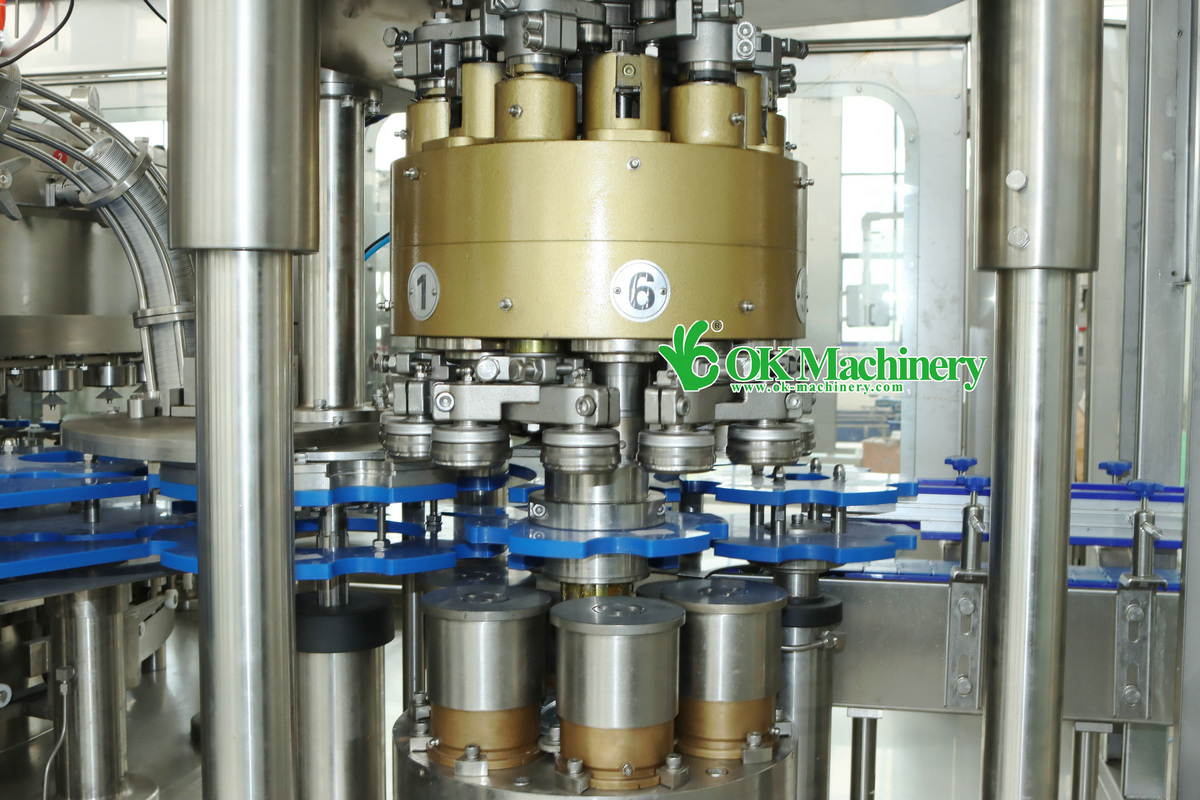

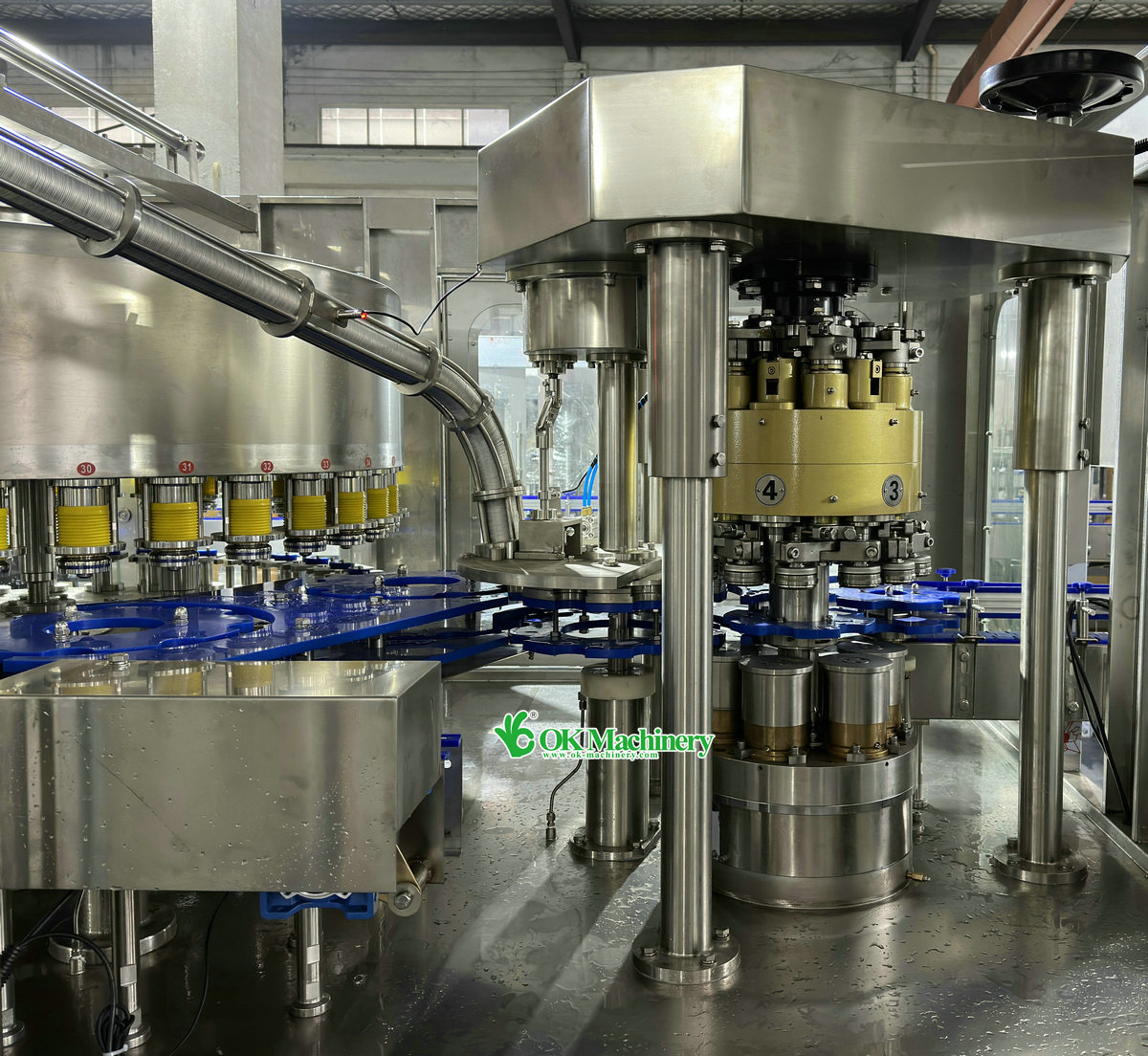

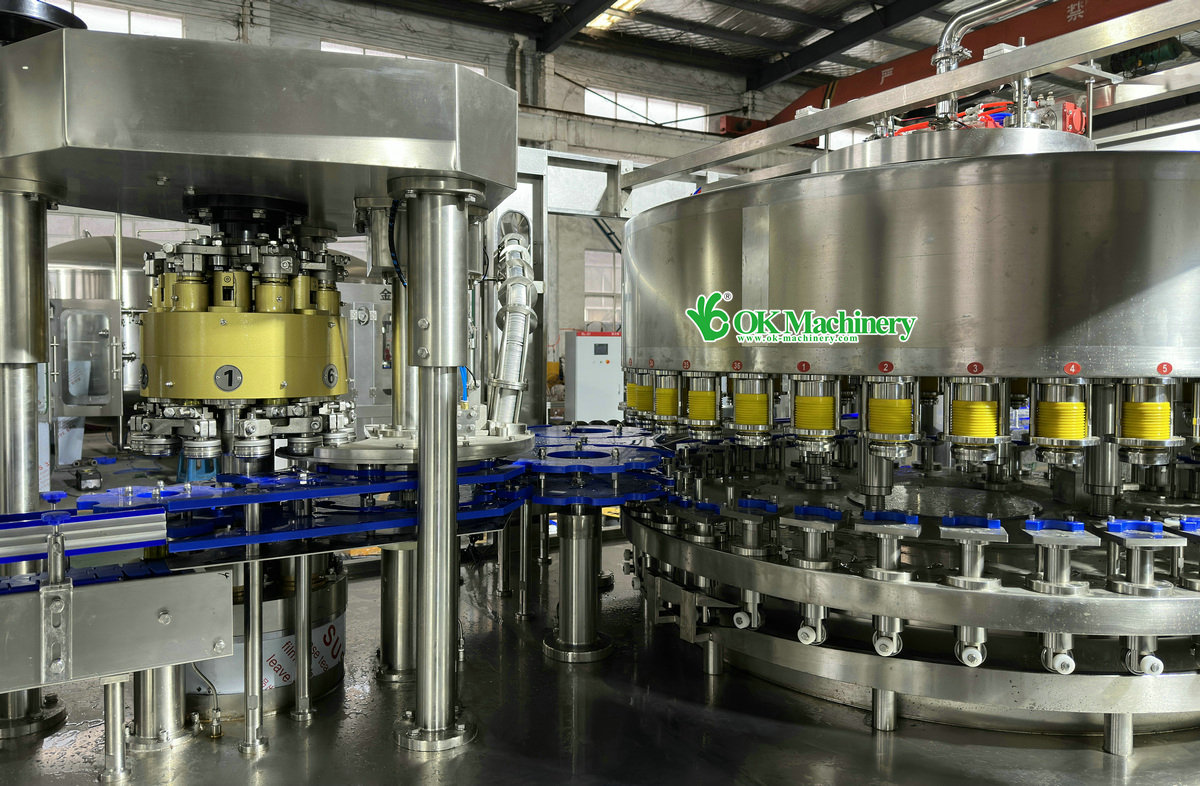

CAN  filling and sealling machine
1> Juice filling line production capacity is usual in 1,000-36,000bph, 250ML 330ML 500ML Aluminum can are available.
2> Juice filling line can apply to fill fruit juice, energy drink, hot tea drink into aluminum can by changing few spare parts.
3> Automatic juice filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316.
4> Pivotal electrical parts adopt Mitsubishi, OMRON, and SIEMENS for juice filling production line.
5> The whole production filling line accuracy is more or less than 1%.

Model

12-1

18-6

24-6

32-6

40-8

Capacity

1500-2000

4000-6000

8000-10000

10000-12000

12000-15000

Can Volume

200ml to 1000ml

Can Diameter

50mm to 70mm

Can High

120mm to 170ml

Power

1.5KW

2.2KW

3.7KW

5.5KW

7.5KW

Machine Size

175x120

275x195

315x215

345x225

350x235

CAN warming tunnel
1>It is with the advantages of sterilizing temperature automatic control and adjustable sterilizing time.
2> It can be designed and made to the sterilization conditions and production provided by the customer.
3> It can be widely used in sterilizing and cooling of juice and beverage in various bottles and cans, electrolyte beverage, wine and condiments. It adopts warm water to preheat, sterilize with recycling hot water, recycling warm water to pre-cool, and cooling water to cool.
4> The machine adopts a temperature control system with high temperature control accuracy and sensitive response. Press the button of the temperature control table to set the temperature, which can be changed arbitrarily within the range of 0-100°C



















8000-10000 cans/hour 32-6 can filling machine video
